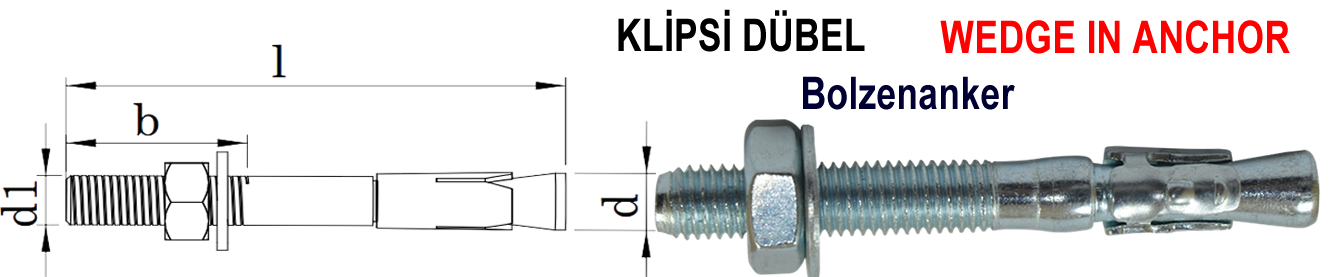

WEDGE ANCHOR
|
ANCHOR CODE
|
SLEEVE LENGHT
|
OUTSIZE
|
|
KLÄ° 8X75
|
75 |
8
|
|
KLÄ° 10X90
|
90 |
10
|
|
KLÄ° 12X110
|
110 |
12
|
|
KLÄ° 16X145
|
145 |
16
|
|
WEDGE ANCHOR
DÜBELSAN
|

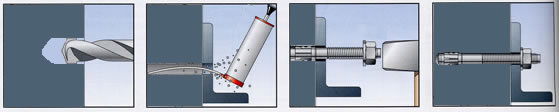

| DRILLED IN THE CONCRETE DOWEL DRILL DIAMETER.IMPORTANT ELEMENTS DIAMETER DOWEL HOLES MUST BE DRILL IN SUCH AWAY TO WROP TIGHT. (ZINC PLATED)(7-10 mikron) |
Montaj
